7.5 X 54 FRENCH Mle. 29

Research notes

At the end of WW1 the French faced the decision to replace the ageing 8mm Lebel and Berthier rifles with a more modern cartridge. Various experimental rounds were tested during that time period but in 1924 the 7.5 x 58 M24 was developed. However, not long afterwards in 1929 it was replaced by the shorter 7.5 x 54 MAS (Manufacture d'armes de Saint-Étienne) M29. The rifle adopted was the Modèle 36

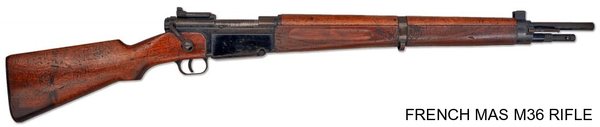

Although the M36 did not see too much action during WW2, the French continued to produce it until the early 1950’s where it saw some service in the then French Indochina. It was a lightweight and rugged rifle that was suited to the jungle conditions of South East Asia. It was a bolt action rifle however so it became obsolete because most Western powers as well as the Communist Bloc already had semi-auto rifles that were developed just post WW2.

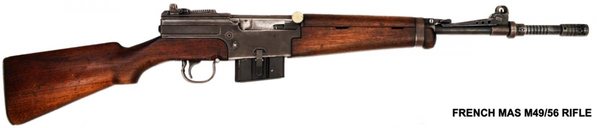

The M36 was upgraded to the M49/56 rifle that was a 10 shot semi auto rifle. More than a quarter of a million were manufacture until production ceased in the late 1970’s when the French had to follow their NATO counterparts and adopted the 5.56x45 NATO rifle.

BALL

FRENCH LOADINGS

LM = Atelier fabrication du Mans

MI = Robert Paulet & Cie Société Méridionale d'Industrie (formerly Cartoucherie Léon Paulet) à Marseille. F = Tréfileries et Laminoirs de la Méditerranée à St-Louis.

GM NATO F1 BULLET

SF: Société Française des Munitions (Gévelot) à Paris (In many cases SF supplied their own cases as well)

I = Société de Métallurgie Franco-Belge à Issy Les Moulineaux.

S: Compagnie Française des Métaux à Sérifontaine.

LM = Atelier de Fabrication du Mans, since 1936 resulting from the nationalization of a plant originally by Manurhin in 1927. Activities at the plant resumed in 1948 after WW2 until 1968 when it was amalgamated with Rennes Construction Workshop (for the large caliber ammunition), which later became GIAT Industries. NM = Diehl Metall GmbH, Nuremberg

MR = Manufacture de machines du Haut-Rhin à Mulhouse-Boutzwiller. DO = Unknown

R = Tréfileries and Laminoirs du Havre in Rugles. Sometimes loader as well as metal provider under the name of Cartoucherie de la Seine.

CC = unknown

VS = Atelier de Construction de Versailles.

Laquered steel tip

HEAVY BALL

CN is associated with two different factories, namely Atelier Mécanique de Normandie as well as Ets Claudinon et Cie, Le Chambon-Feugerolles. PC = Ets Caillaux à Boulogne-s/Seine.

MR = Manufacture de machines du Haut-Rhin à Mulhouse-Boutzwiller. C = Compagnie Française des Métaux à Castelsarrasin.

VS = Atelier de Construction de Versailles. J = Code attributed to Compagnie Française du Bimétal, à Joinville-le-Pont.

S = Compagnie Française des Métaux à Sérifontaine.

Laquered Steel Bullet (TE S 4-65 7,5)

LM = Atelier de Fabrication du Mans, from 1936 onward as a result of the nationalization of a plant originally by Manurhin in 1927. Activities at the plant resumed in 1948 after WW2 until 1968 when it was amalgamated with Rennes Construction Workshop (for large caliber ammunition), which later became GIAT Industries. WB = Wurag Eisen und Stahlwerk a Hohenlimburg

SF = Société Française des Munitions, Paris et Issy-Les-Moulineaux. HX = Hauts Fourneaux, Forges et Aciéries de Pompey (Meurthe et Moselle).

Laquered steel bullet

TE = Ateliers de Construction de Toulouse PO = Forges de la Providence à Redon.

unvarnished case, most were scrapped

Steel case

Experimental zinc-chronak case

Experimental aluminium case

OTHER COUNTRIES AND CONTRACT LOADS

BELGIUM

Societe Industrielle Voltaique d'Armes et Munitions (SIVAM), Ouagadougou, Burkina Faso.

Manufacture Camerounnaise de Munitions, (State Factory). French Contract load for the Government of Cameroon

LEBANON

PORTUGAL

SYRIA

Vietnam

Vietnam

Quan Doi Viet Nam Cong Hoa Quan Cu., South Vietnam. (Establishment of Material of the Army of South Vietnam).

Yugoslavia

Yugoslavia

OTHER TYPES

ANTI LUEUR (low flash)

Headstamp is also in reverse, with year of manufacture at the bottom and trimester of manufacture at the top.

F = Tréfileries et Laminoirs de la Méditerranée à St-Louis. MI = Robert Paulet & Cie Société Méridionale d'Industrie (formerly Cartoucherie Léon Paulet) à Marseille.

ARMOUR PIERCING

Steel turned, tin plated tip

TE = Atelier de Construction de Toulouse. F = Tréfileries et Laminoirs de la Méditerranée à St-Louis.

N = Etablissement Navarre à Evreux.

S = Compagnie Française des Métaux à Sérifontaine.

D = Société Electromécanique de Dives , formerly Compagnie du Duralin de Dives

VE = Atelier de Construction de Valence, factory ceased production in 1962. P = S.A. Des Mines et Fonderies de Pontgibaud prior to WW2. P was also the code for Société Française des Métaux à Couéran. (post WW2).

Scale 200%

ARMOUR PIERCING TRACER

AP-T Mle. 35A (A denotes a crimping groove on the bullet). Green p/a and neck seal with CN Steel core.

COPPER CRUSHER

VE = Atelier de Construction de Valence, factory ceased production in 1962. F = Tréfileries et Laminoirs de la Méditerranée à St-Louis.

DUPLEX

INCENDIARY

SF = Société Française des Munitions (Gévelot) à Paris (In many cases SF supplied their own cases as well) I = Société de Métallurgie Franco-Belge à Issy Les Moulineaux.

BA = Fonderies et Laminoirs de Paris, usines à Ruelle et Harfleur

D = Société Electromécanique de Dives , formerly Compagnie du Duralin de Dives Incendiary Mle. 35 with blue p/a and neck seal with remnant of a blue tip.

MATCH

LM = Atelier de Construction du Mans. SI = Societa Metallurgica Italiana (Florence)

Case has a purple extractor groove

LM = Atelier de Construction du Mans. NM = Diehl Metall GmbH, Nuremberg

LM = Atelier de Construction du Mans. VA = Verenigte Deutsche Metallwerke, Altena

Match/High Accuracy sniper? load. KS bullet VD = Societe Metallurgique de la Villedieu

KS bullet shown at 200%

PRESSURE TEST

PROOF

TRACER

SF = Société Française des Munitions (Gévelot) à Paris (In many cases SF supplied their own cases as well) I = Société de Métallurgie Franco-Belge à Issy Les Moulineaux.

TE = Ateliers de Construction de Toulouse B = might be any one of the following: Établissement Baroquet et Fouquet Compagnie General d’Electrometallurgie Compagnie du Duraluminium et du Cuivre, Boisthorel

GM Steel core

VE = Atelier de Construction de Valence, factory ceased production in 1962. N = Etablissement Navarre à Evreux.

FN (Belgium)

LM = Atelier de Fabrication du Mans F = Tréfileries et Laminoirs de la Méditerranée à St Louis, formerly Société Huart et Cie, à Marseille.

VD = Code attributed to Société Metallurgique de La Villedieu

LM = Atelier de Fabrication du Mans, since 1936 resulting from the nationalization of a plant originally by Manurhin in 1927. Activities at the plant resumed in 1948 after WW2 until 1968 when it was amalgamated with Rennes Construction Workshop (for the large caliber ammunition), which later became GIAT Industries. WR = Stahlwerke Sudwestfalen GmbH

Short range tracer Mle. F3 for L.R.A.C. 89 mm and Apilas rocket.

Below are two variations of the short range spotter tracer Mle. F2 for the 106mm recoilless rocket.

LM = Atelier de Fabrication du Mans, since 1936 resulting from the nationalization of a plant originally by Manurhin in 1927. Activities at the plant resumed in 1948 after WW2 until 1968 when it was amalgamated with Rennes Construction Workshop (for the large caliber ammunition), which later became GIAT Industries. EW = Attributed to Eschweiler Bergwerks Verein à Eschweiller, RFA.

VA = Verenigte Deutsche Metallwerke Altena

BLANK

ASSMAN (Austria)

LM = Atelier de Fabrication du Mans, since 1936 resulting from the nationalization of a plant originally by Manurhin in 1927. Activities at the plant resumed in 1948 after WW2 until 1968 when it was amalgamated with Rennes Construction Workshop (for the large caliber ammunition), which later became GIAT Industries. DA = Sigle d'Usinor S.A., usine de Denain-Anzin.

Blank Mle. 58M. Virtually the same as the Mle. 58 but with primer ring crimp.

Blank Mle. F1 with white/translucent body with aluminium or galvanised / chromated steel base Blank Mle. 58 with white/translucent body with galvanised or chromated steel base

Mle. 69 Blank. Aluminium or chromated steel base

Systeme Paulet

MI = Robert Paulet & Cie Société Méridionale d'Industrie (previously Cartoucherie Léon Paulet) à Marseille.

Fired blank

MR = Manufacture de machines du Haut-Rhin à Mulhouse-Boutzwiller. D = Electromechanical Company of Dives, later became Compagnie du Duralumin and Copper This case was formed from old 7.5x58 Mle.24 cases as can be seen from the date (1928), so this is a very early blank.

Gold painted tip. This is a movie blank

Steel case.

TE = Ateliers de Construction de Toulouse CCM = Compagnie des Forges de Châtillon Commentry et Neuves-Maisons.

Machinegun Blank Mle. 30 with natural wooden bullet. Bullets were natural or blue coloured until March 1958, when it was changed to purple/lilac.

TH = Cartoucherie de la Seine a subsidiary of the Tréfileries du Havre group in Rugles. R = Tréfileries and Laminoirs du Havre, Rugles. Sometimes also the case supplier under the name of Cartoucherie de la Seine.

Machinegun Blank Mle. 36.

Rifle Blank Mle. 1937. TE = Ateliers de Construction de Toulouse D = Electromechanical Company of Dives, which subsequently became Duralumin and Copper Company

P = Société Française des Métaux à Couéran, post 1945

Laquered steel case. The sequence on the headstamp is different from normal as the trimester of manufacture and metal supplier (C) were switched.

CCM = Compagnie des Forges de Châtillon Commentry et Neuves-Maisons

H = Tréfileries and Laminoirs du Havre, Graville plant

BD = Les Fils de Victor Bidault et Cie, à Vitry sur Seine. There are 2 other manufacturers that also utilised code BD, namely Etablissement Brandt, de Levallois (during the period between WW1 and WW2) and Societè de Forges Barriol & Fils/Ch. Daillierè à Andrezieux (1914-1918).

Very early blank manufactured from reworked 7.5x58 Mle. 24 cases MR = Manufacture de machines du Haut-Rhin à Mulhouse-Boutzwiller D = Electromechanical Company Dives, which subsequently became Duralumin and Copper Company

Machine gun blanks for the FM 24/29 and Reibel MAC 31. From March 1958 all blanks were purple/lilac coloured. This was also the period when wooden bulleted blanks were being phased out because in 1958 the plastic Mle. 58 blanks were already in use. It was also no longer colour coded (blue for the FM 24/29 and red for the MAC 31). There is now a differentiation between a more rounded profile for the FM 24/29 and pointed for the MAC31.

TE = Ateliers de Construction de Toulouse TLM = Tréfileries et Laminoirs de la Méditerranée, usine de Marseille

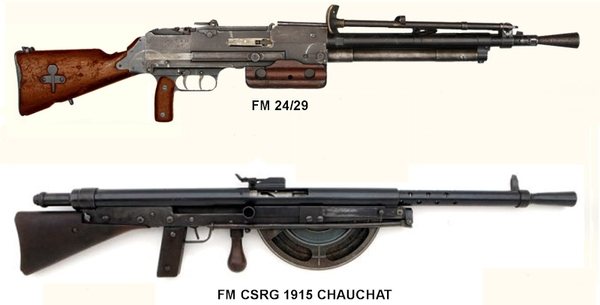

The Fusil-Mitrailleur Modèle 1924 M29 was the standard light machine gun of the French Army from 1925 until the 1960s. After the end of World War I, the French Army sought to replace the problematic Fusil-mitrailleur mle 1915 CSRG light machine rifle (better known as the Chauchat). French commanders considered standardizing on the American Browning Automatic Rifle (BAR), but eventually required the development of a locally built weapon. MAS (an abbreviation of Manufacture d'Armes de St. Etienne - one of several government-owned arms factories in France) proposed a direct derivative of the BAR, but the Manufacture d'Armes de Châtellerault (MAC) won the bid with its weapon, which was partly derived from the BAR action. It had been formulated and designed by a Lieutenant Colonel Reibel assisted by Chief Armorer Chosse.

The FM Mle 1924 entered production in late July 1925 and saw first operational use in Morocco in May 1926. It was originally chambered for the 7.5x58 Mle. 24 cartridge, but that caused some serious problems for the French in that the 7.9x57 used by Germany also fitted in the M24 with disastrous results. This indirectly lead to the development of the 7.5 Mle. 29. (wikipedia)

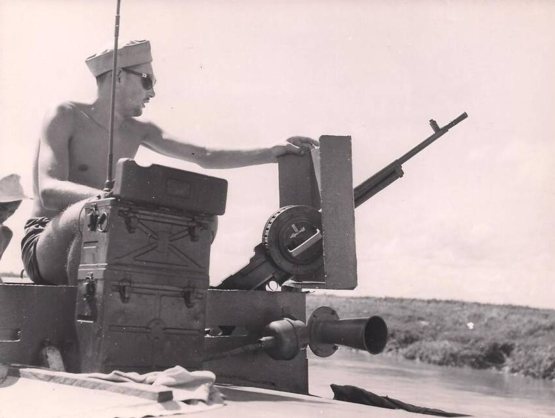

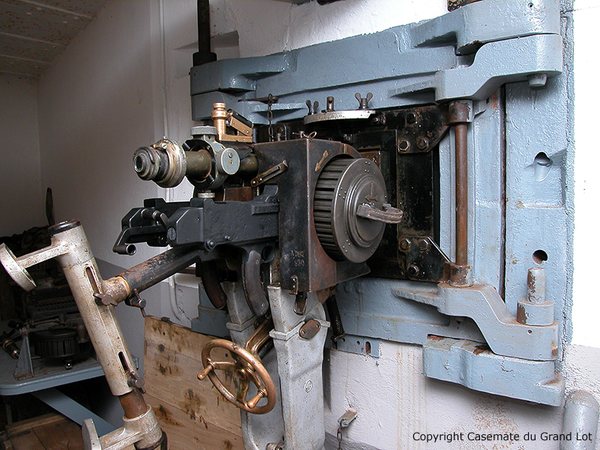

The REIBEL MAC31 was developed from the Mle. 24/29 Machinegun in 1930. The main difference was that it made use of a 150 round drum fed magazine. It was also known as the JM Reibel, with JM meaning Jumelage de mitrailleuses which means twin machine gun mounting. Reibel is the name of the director of the state owned arms factory MAC (Manufacture d’armes de Chatellerault) where it was developed and produced. As can be seen from the picture below, it was used on the Maginot line with the twin barrel configuration for an accelerated rate of fire, or continuous use where one barrel can be left to cool while the second barrel was in operation.

DUMMY

Magazine Stopper

Box test dummy

Dummy load with hollow nickel jacket

SF: Société Française des Munitions (Gévelot) à Paris (In many cases SF supplied their own cases as well) I = Société de Métallurgie Franco-Belge à Issy Les Moulineaux.

Laquered steel tip. Case is filled with coarse sand to simulate weight.

TE = Atelier de Construction de Toulouse. TLM = Tréfileries et Laminoirs de la Mèditeranee à Marseille

VE = Atelier de Construction de Valence, company ceased production in 1962 D: Société Electromécanique de Dives, formerly Compagnie du Duralumin de Dives. BA = Fonderie et Laminoirs de Paris. Usine à Ruelle et Harfleur.

VS = Atelier de Construction de Versailles. S = Compagnie Française des métaux à Sérifontaine

Lesteè = Ballast. Loaded with a coarse inert filler to simulate the weight of a loaded round. LM = Atelier de Fabrication du Mans, since 1936 resulting from the nationalization of a plant originally by Manurhin in 1927. Activities at the plant resumed in 1948 after WW2 until 1968 when it was amalgamated with Rennes Construction Workshop (for the large caliber ammunition), which later became GIAT Industries. EW = Attributed to Eschweiler Bergwerks Verein à Eschweiller, RFA.

GRENADE BLANK

LM = Atelier de Construction du Mans. BO = Atelier & Forges de la Loire usine de Boucau

SF = Société Française des Munitions (Gévelot) à Paris I = Société de Métallurgie Franco-Belge à Issy Les Moulineaux.

S = Compagnie Française des Métaux à Sérifontaine.

TE = Atelier de Construction de Toulouse. B = might be any one of the following: Établissement Baroquet et Fouquet Compagnie General d’Electrometallurgie Compagnie du Duraluminium et du Cuivre, Boisthorel

Pressure Test case C = Compagnie Française des Métaux à Castelsarrazin, (Metal Provider)

D = Société Electromécanique de Dives devenue Compagnie du Duralin de Dives

F = Tréfileries et Laminoirs de la Méditerranée à St-Louis.

I = Société de Métallurgie Franco-Belge à Issy Les Moulineaux.

Grenade/propulsive blank Mle. F1 with cork filler, rose crimp, neck crimp and bitumen seal.

N = Etablissement Navarre à Evreux.

VE = Atelier de Construction de Valence, company ceased production in 1962 BD = Les Fils de Victor Bidault et Cie, à Vitry sur Seine. There are 2 other manufacturers that also utilised code BD, namely Etablissement Brandt, de Levallois (during the period between WW1 and WW2) and Societè de Forges Barriol & Fils/Ch. Daillierè à Andrezieux (1914-1918).

VS = Atelier de Construction de Versailles. BS = Atelier de Laminage de l’Ecole Centrale de Pyrotechnie de Bourges

Electric Primed grenade blank - no headstamp

Neck has a seperate brass collar, with concave mouth

VE = Atelier de Construction de Valence, company ceased production in 1962 FY = Compagnie des Ateliers et Forges de la Loire, de Firminy

Propulsive Blanks for anti-riot use, tear gas grenades.

Belgian Grenade Blank by FN

SUB-CALIBER AND GALLERY LOADS

Sub-Cal load for 73mm Rocket (electric primed)

Sub-cal. for 73mm Rocket (Aluminium case/Electric Primed)

Experimental Aluminium cased sub-cal. for 89mm LRAC/Apilas F1 Rocket. Nickel plated lead ball.

Sub-Cal device for 22LR

SHORT RANGE

Short range for aircraft use, CN with aluminium core. VS = Atelier de Construction de Versailles. I = Société de Métallurgie Franco-Belge à Issy Les Moulineaux.

Sub-Sonic with laquered steel bullet.

MI = Robert Paulet & Cie, Société Méridionale d'Industrie, formerly Cartoucherie Léon Paulet à Marseille. Ceased production end of 1965. F = Tréfileries et Laminoirs de la Méditerranée à St Louis, formerly Société Huart et Cie, à Marseille.

RY = Etablissements Rey Frères à Nimes, which became a subsidiary of Nobel Bozel C = Compagnie Française des Métaux à Castelsarrasin.

SF = Société Française des Munitions, Paris et Issy-Les-Moulineaux. GP = unknown

Short range Mle.61

Experimental loadings

Short range Mle. F2 for 89mm LRAC rocket. The electric primer is Mle. 79 B 201

Short range 1st type, Mle. F3

WEIGHT TEST

MR = Manufacture de machines du Haut-Rhin à Mulhouse-Boutzwiller C = Compagnie Française des Métaux à Castelsarrasin.

VE = Atelier de Construction de Valence. Company in production from 1882 to end of 1962. PC = Ets Caillaux à Boulogne-s/Seine.

French Commando with the M49/56 rifle
