METRIC MILITARY UP TO 5.99mm
5.56 X 43.8 FLECHETTE XM-144
5.56 X 43.8 · 7 headstamps · 11 scans
| Calibre | 5.56 X 43.8 |
| In the cabinet | METRIC MILITARY UP TO 5.99mm · 18 images |
Reading the headstamp
12 o'clockMaker's name or factory code
6 o'clockCalibre or year of manufacture
CentrePrimer — Berdan or Boxer, and any seal colour
Research notes
The story of the flechette (little arrows) goes back to the First World War when it was first utilised by the French. There is a very good piece that was done on the whole flechette program on THE GUN ZONE. It is by Daniel Watters and is a summary of the history of the project and you can also find the military research HERE
BALL PROOF
DUMMY ANODIZED ALUMINIUM CASE
DUMMY

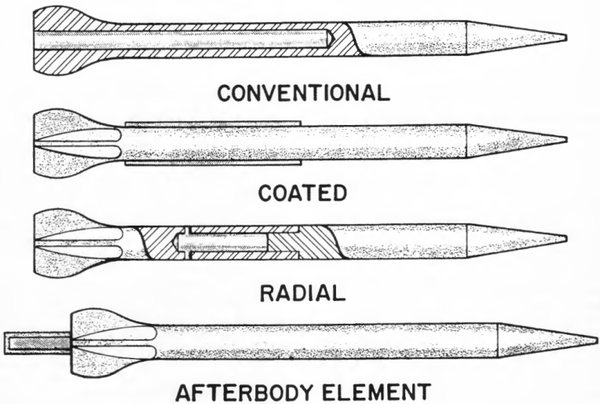

Although I do not have any specimens in my collection, this is an AAI drawing showing four proposed designs of a tracer fléchette. The cartridge used in the tests was loaded with a variation of the one at top.
Provenance
2014Catalogued in the collection
2023Record last revised · 2023-05-11
